Fluke Versiv 2 DSX2-8000 2Ghz CableAnalyzer Cat8 Cat6a Cable Certifier DSX-8000

Fluke Versiv 2 DSX2-8000 2Ghz CableAnalyzer Cat8 Cat6a Cable Certifier DSX-8000

Item specifics

Condition: Like New
Seller Notes: Unit is used and in excellent condition with little to no signs of previous use. Thoroughly tested to be in working order with a 60-Day warranty.
Brand: Fluke Networks
Custom Bundle: No
Model: Fluke Networks Versiv 2 DSX2-8000
MPN: DSX2-8000
Country/Region of Manufacture: United States
Modified Item: No

Item Description

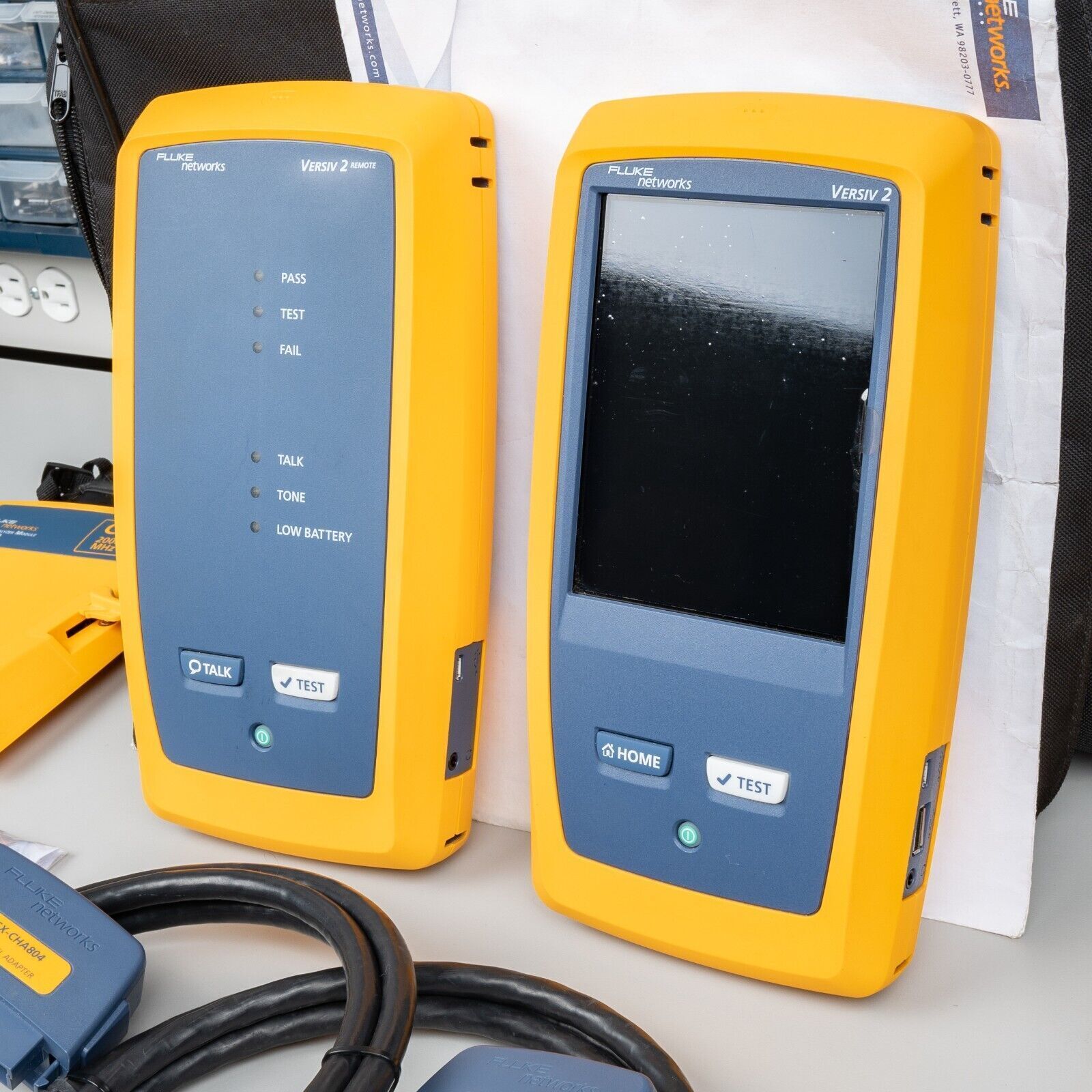

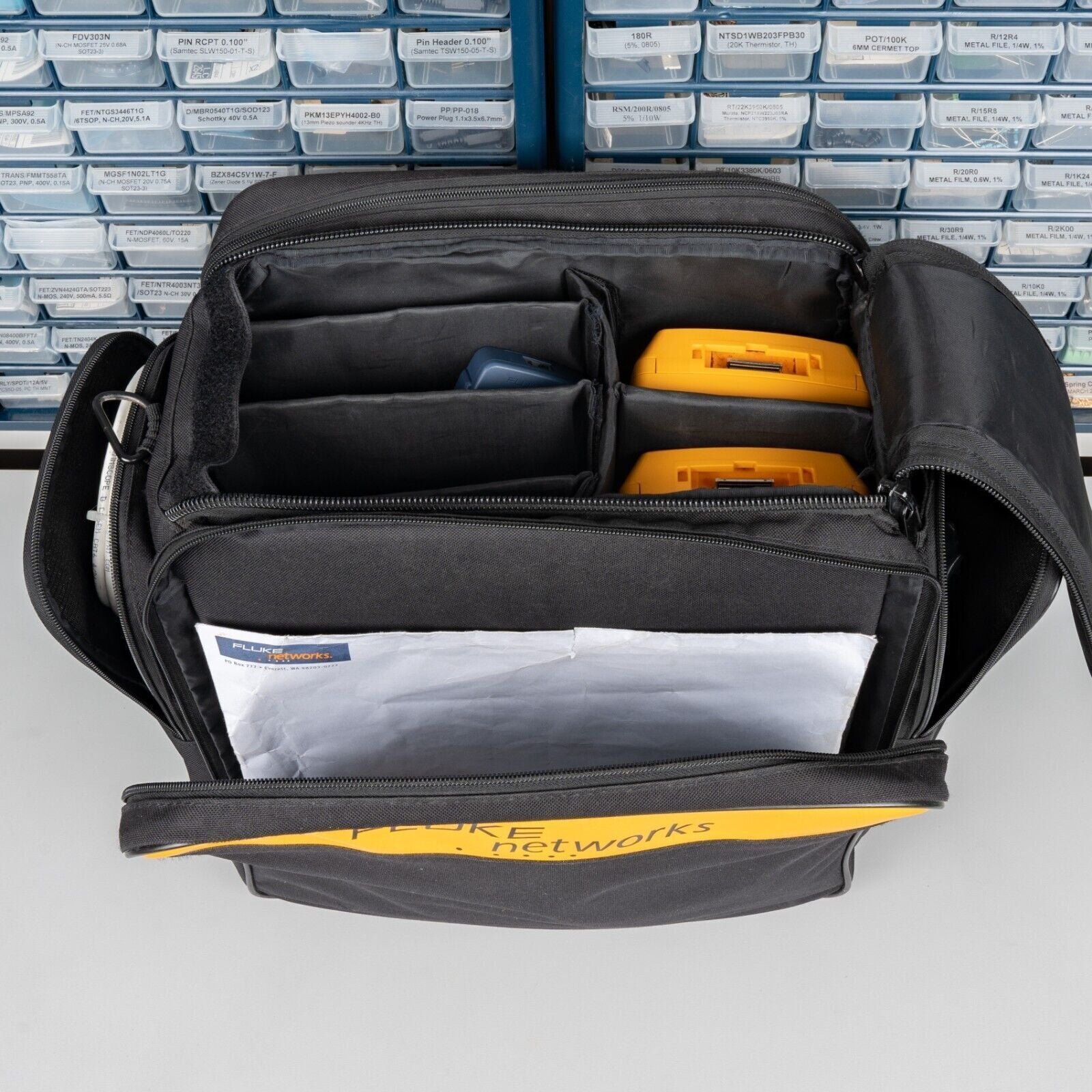

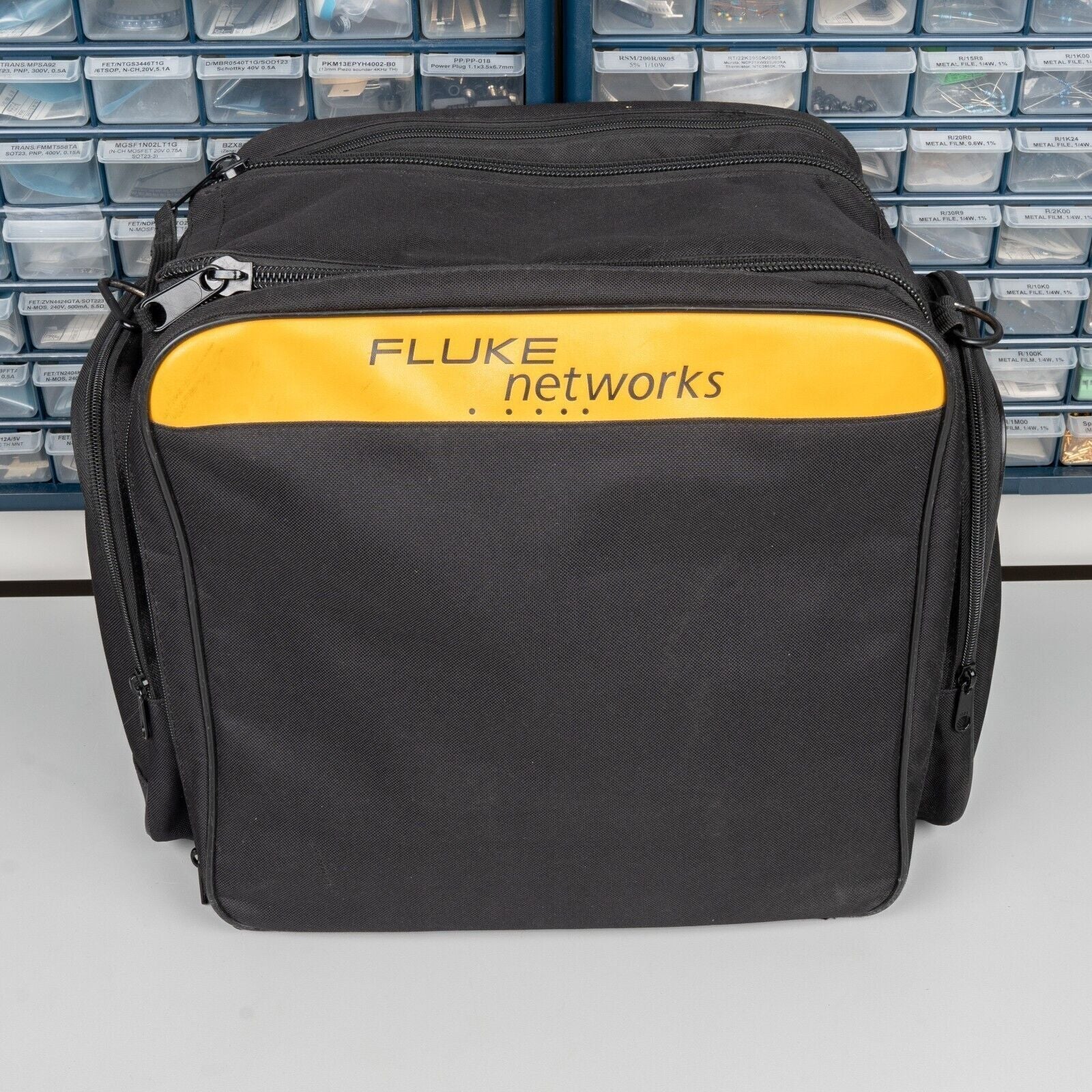

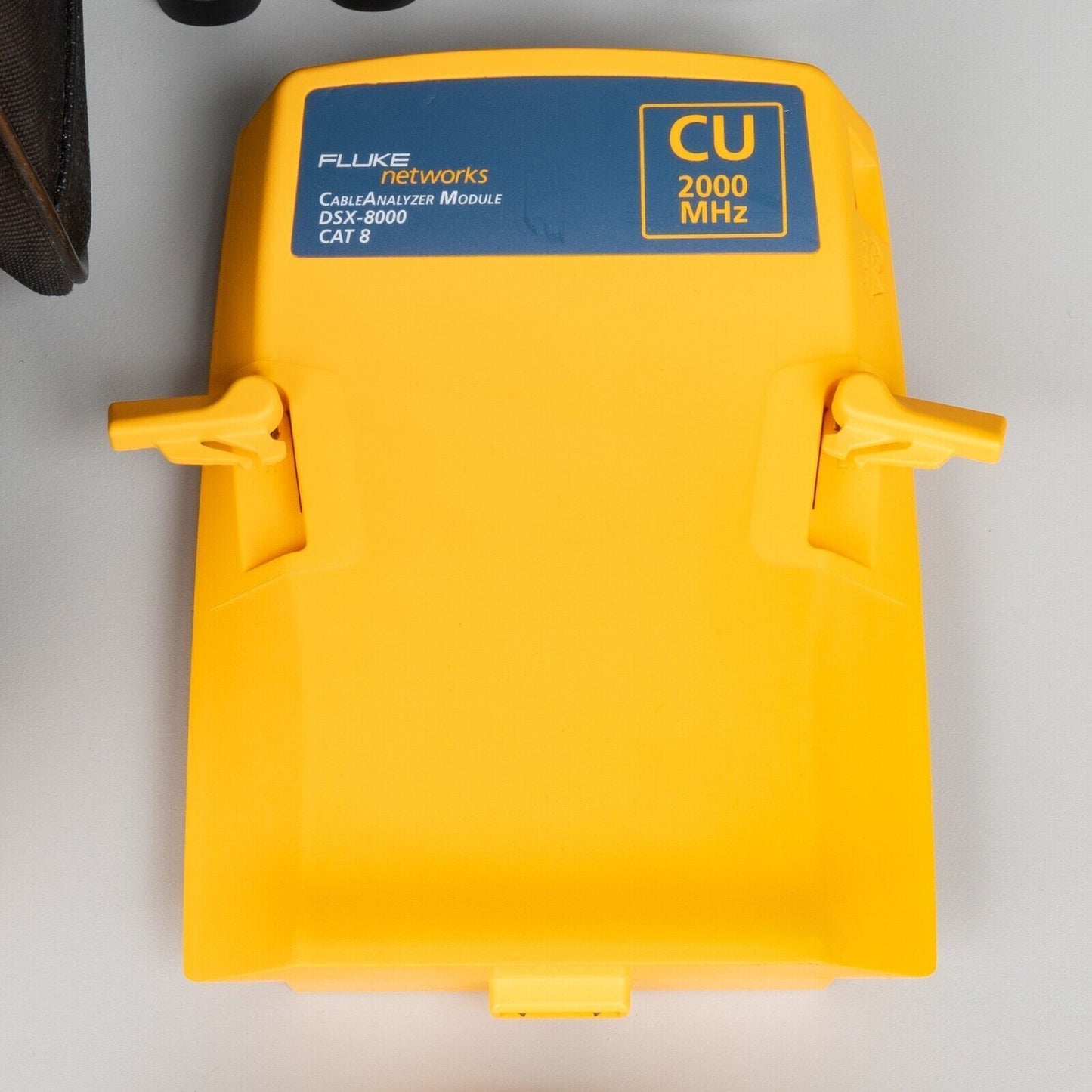

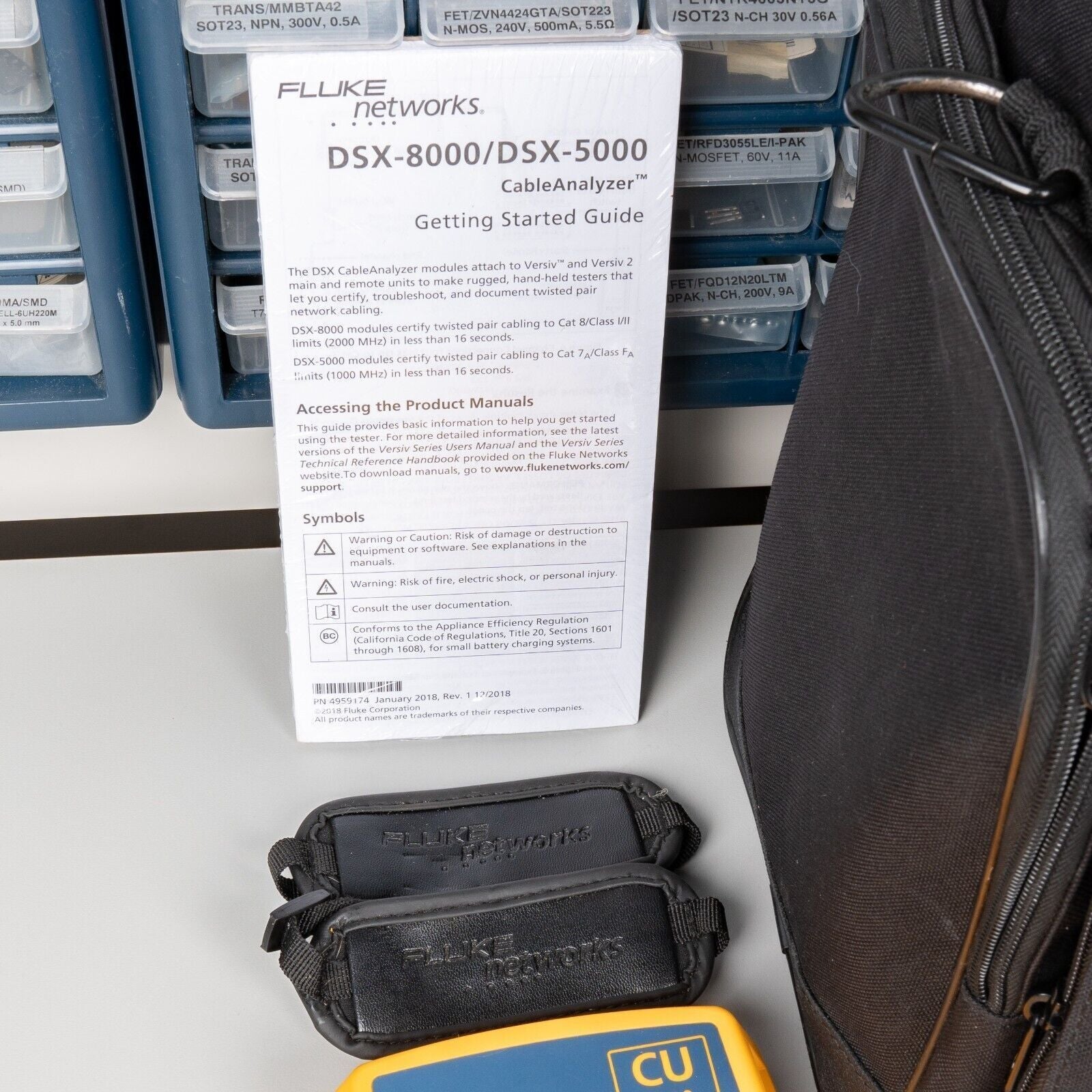

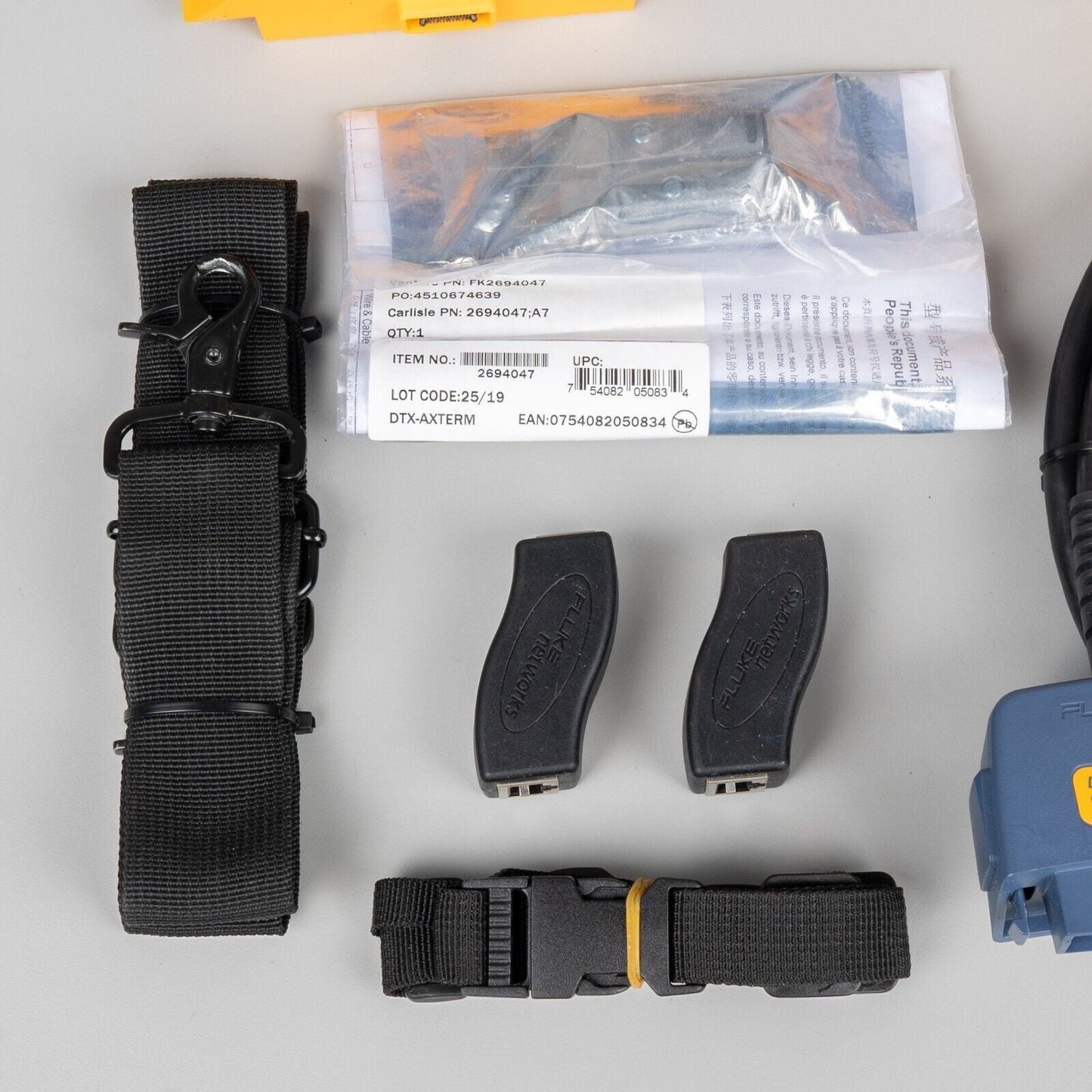

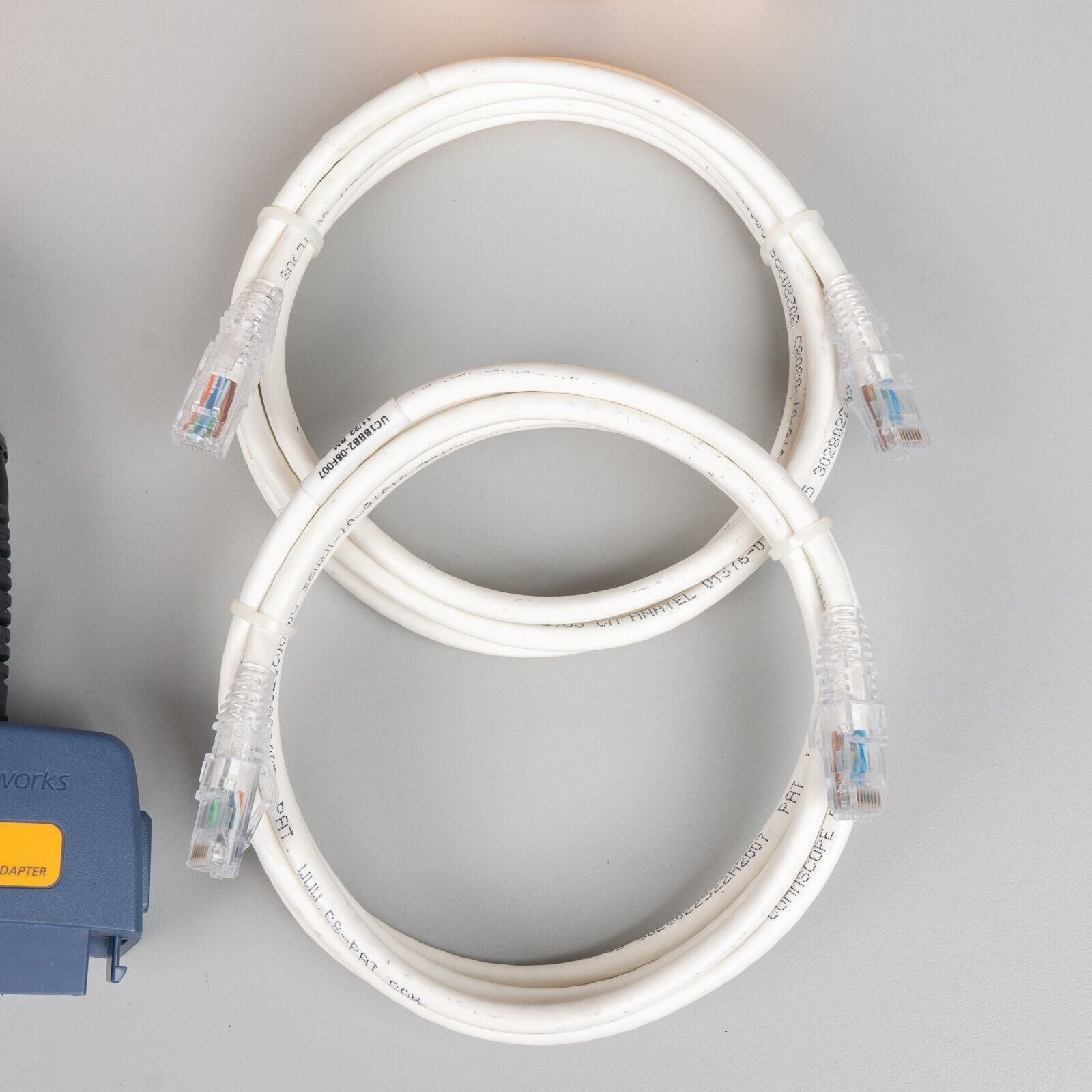

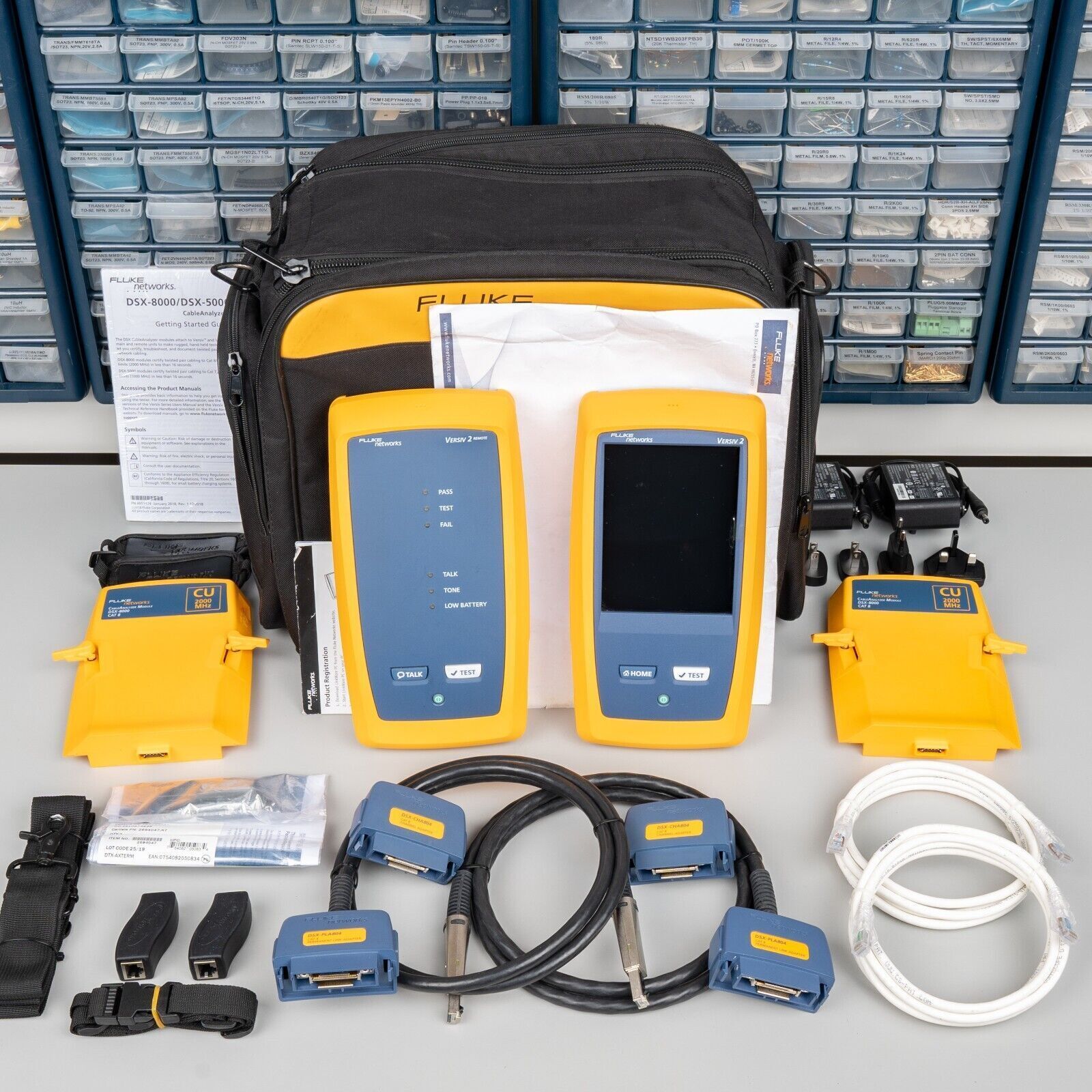

Fluke Networks Versiv 2 DSX2-8000 2Ghz LAN CableAnalyzer Copper Cable Certifier with all accessories seen in photographs. Unit is used and in excellent condition with little to no signs of previous use. Thoroughly tested to be in working order with a 60-Day warranty. Unit has a Jan 2020 factory calibration. Ships from Canada, Ontario. For Questions please contact us. We appreciate your business!

Product Features:

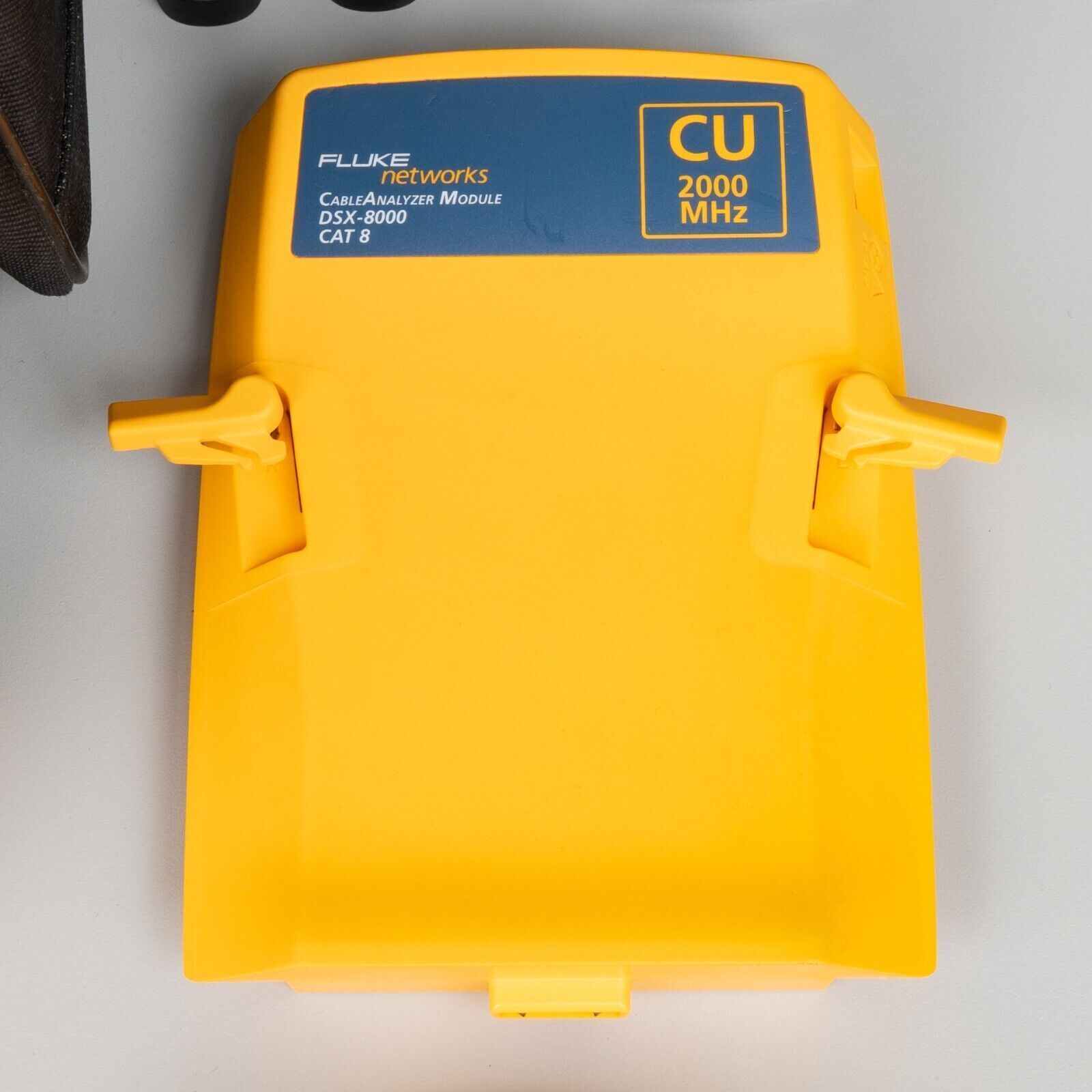

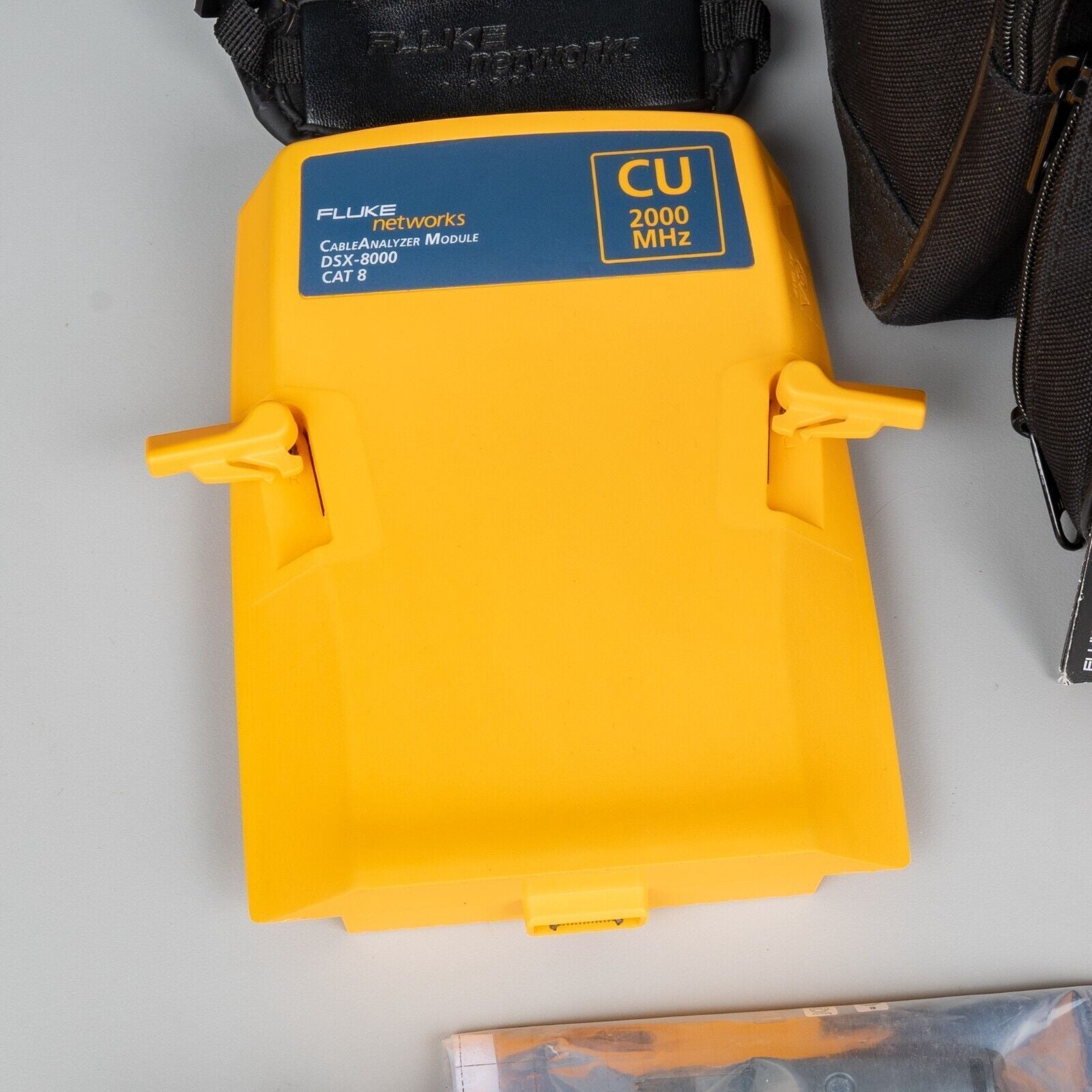

The DSX CableAnalyzer Series copper test solution enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.

As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.

Highlights:

Eight second Cat 6A test time contributes to the fastest way to gain certification
Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
Manage up to 12,000 Cat 6A test results with full graphics
Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
Over 1 billion links reported on LinkWare PC management software
Integrated Wi-Fi allows you to easily upload results to LinkWare™ Live
Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even locate tester from any smart device
ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
LinkWare PC management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem


Specifications:

Copper Certifications
Category 6A / Class EA Test Time    8 Seconds
Category 8 / Class I/II Test Time    15 Seconds
HDTDX/HDTDR Diagnostic Test Times    ~3 Seconds
Internal Memory    ~5,000 Cat 8 with plots
~12,000 Cat 6A with plots
Level V Accuracy    1 GHz
2G Accuracy    2 GHz
Resistance Unbalance Measurement    Yes
Shield Integrity Check    Yes
TCL Measurement    Yes
ELTCTL Measurement    Yes
CDNEXT Measurement    Yes
CMRL Measurement    Yes
Built in Alien XTalk Module    Yes

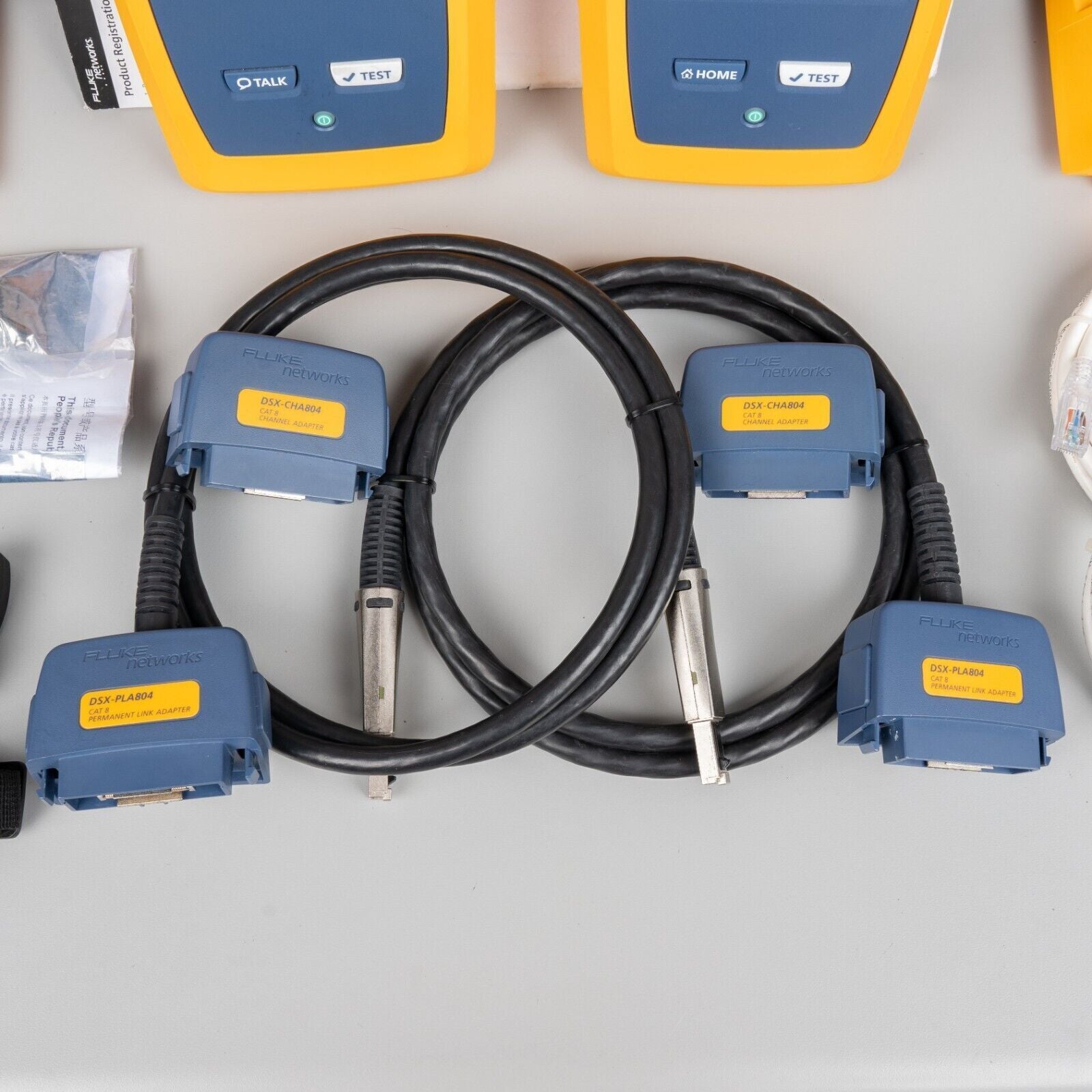

Channel Adapter    2 GHz Range
Permanent Link Adapter    2 GHz Range
Environmental
Operating Temperature    32°F to 113°F (0°C to 45°C)
Storage Temperature    -22°F to 140°F (-30°C to 60°C)
Operating Relative Humidity (% RH Without Condensation)    0% to 90%, 32°F to 95°F (0°C to 35°C)
0% to 70%, 95°F to 113°F (35°C to 45°C)
Vibration    Random, 2 g, 5 Hz-500 Hz
Shock    1 m drop test with and without module and adapter
Safety    CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Operating Altitude    13,123 ft (4,000 m)

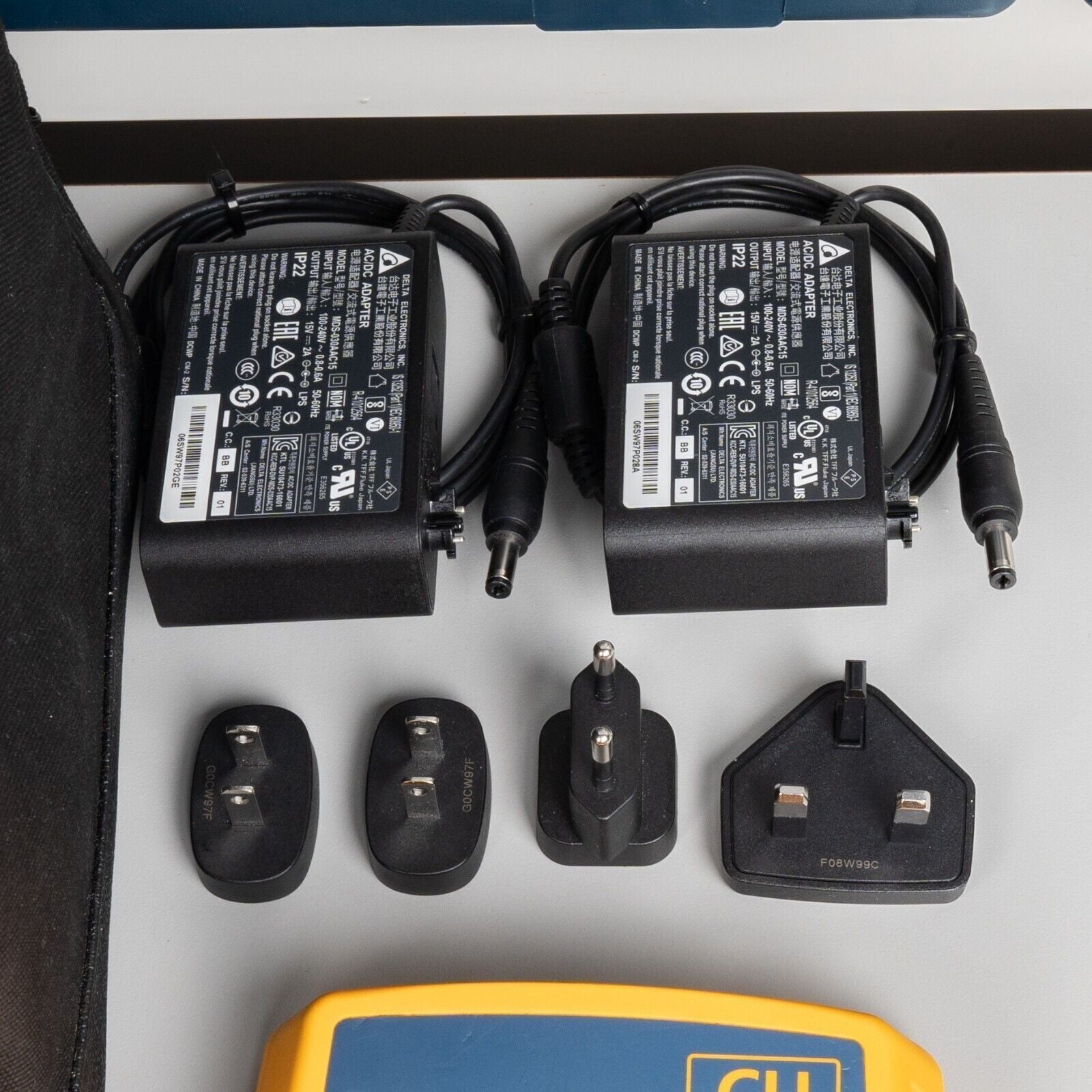

10,500 ft (3,200 m) with AC Adapter
EMC    EN 61326-1
General Specifications
Autotest Time    Full 2-way Autotest of Cat 5e or 6/Class D or E: 7 seconds Full 2-way Autotest of Cat 6A/Class EA: 8 seconds Full 2-way Autotest of Cat 8: 16 seconds
Support Test Parameters    Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End
Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input Protection    Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage

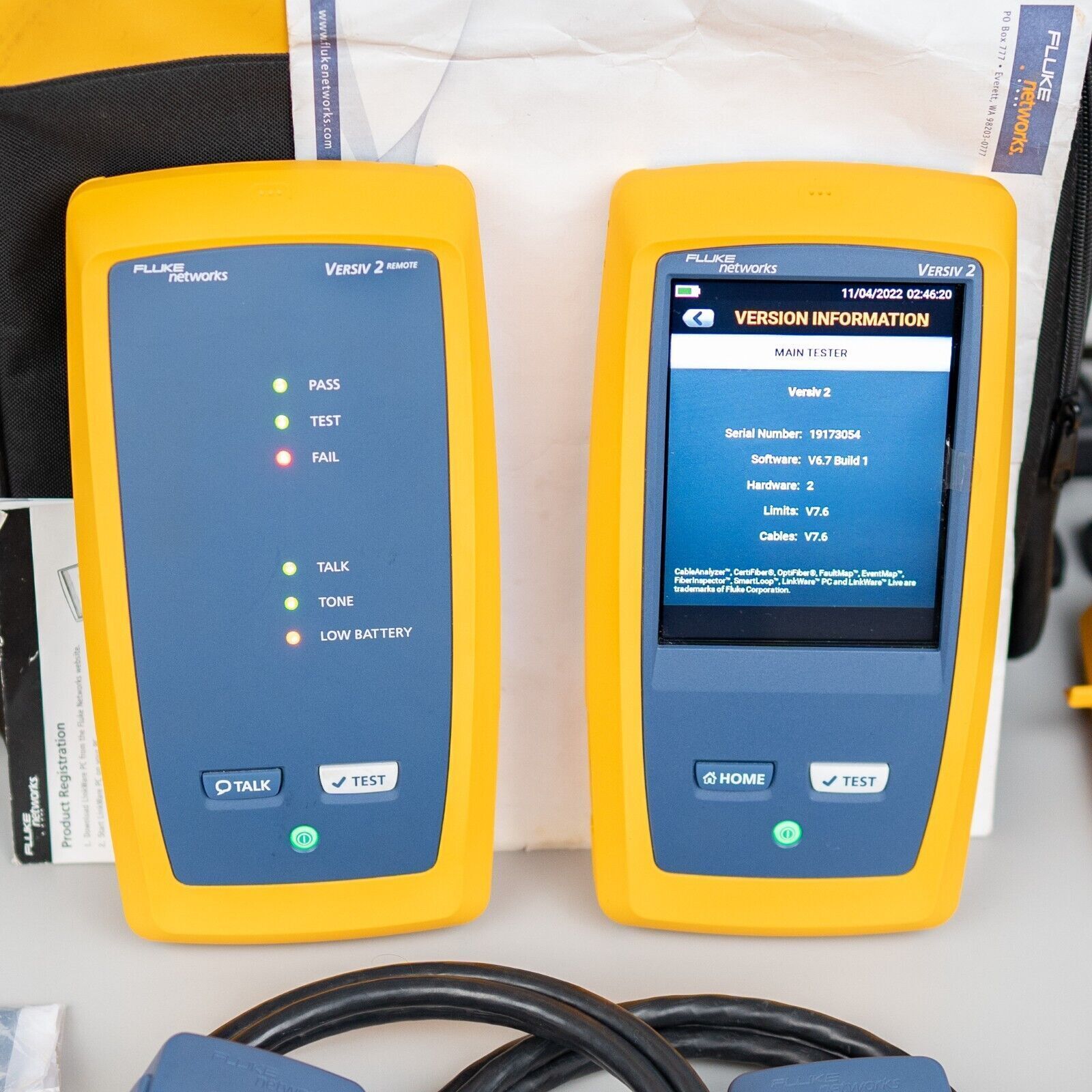

Display    5.7 in LCD display with a projected capacitance touchscreen
Case    High impact plastic with show absorbing overmold
Dimensions    Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight    Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Main Unit and Remote    Lithium ion battery pack, 7.2 V
Typical Battery Life    8 hours
Charge time    Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages Supported    English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Traditional Chinese, Czech, Polish, Swedish, Hungarian
